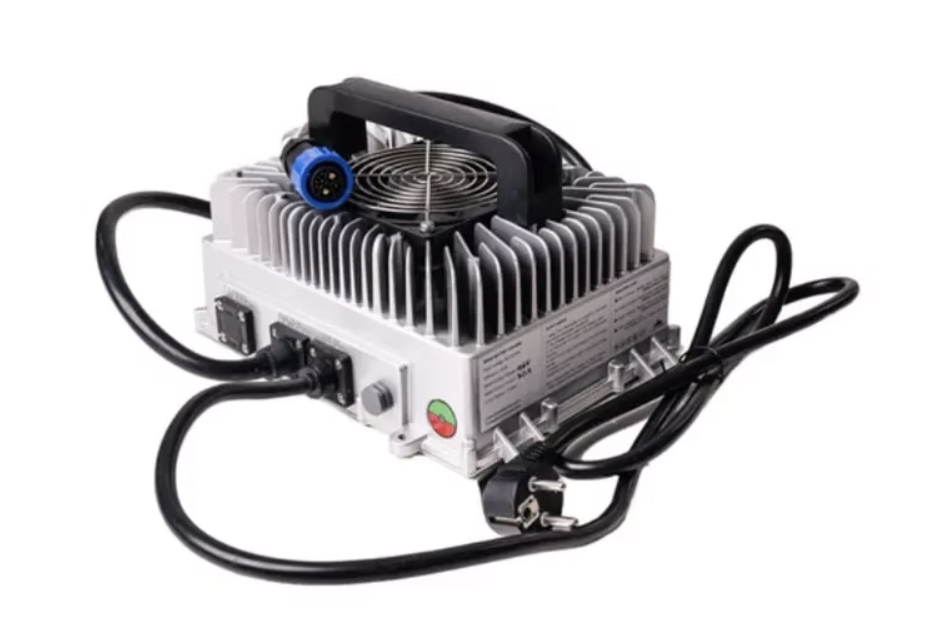

BSR X4/X5 Charger

For X4 / X5 Category

C3000 Charger Specifications

Product Number: 52-01-03004
Power: 3.5kW
Input Voltage: 90V–260VAC, 50–60Hz
DC Output: 109.2V 32A
Charging Mode: CC/CV (Constant Current / Constant Voltage)
Size: 295 x 205 x 110 mm (150 w/ handle)
Net Weight: 10kg
Material: Aluminium Case
Ingress Protection: IP67

Safety Features

Automatic Cut-Off: Prevents overcharging by automatically stopping the charging process when the battery is fully charged.
Overheat Protection: Shuts down the charger to prevent overheating, ensuring safe operation.
High Voltage Surge Protection: Guards against voltage spikes from the power source.
Reverse Polarity Protection: Prevents damage if the battery is connected incorrectly.
Short Circuit Protection: Automatically disconnects power if a short circuit is detected.
